δ2H and δ18O analyses of solid, liquid and gaseous samples

δ2H and δ18O analyses of solid, liquid and gaseous samples

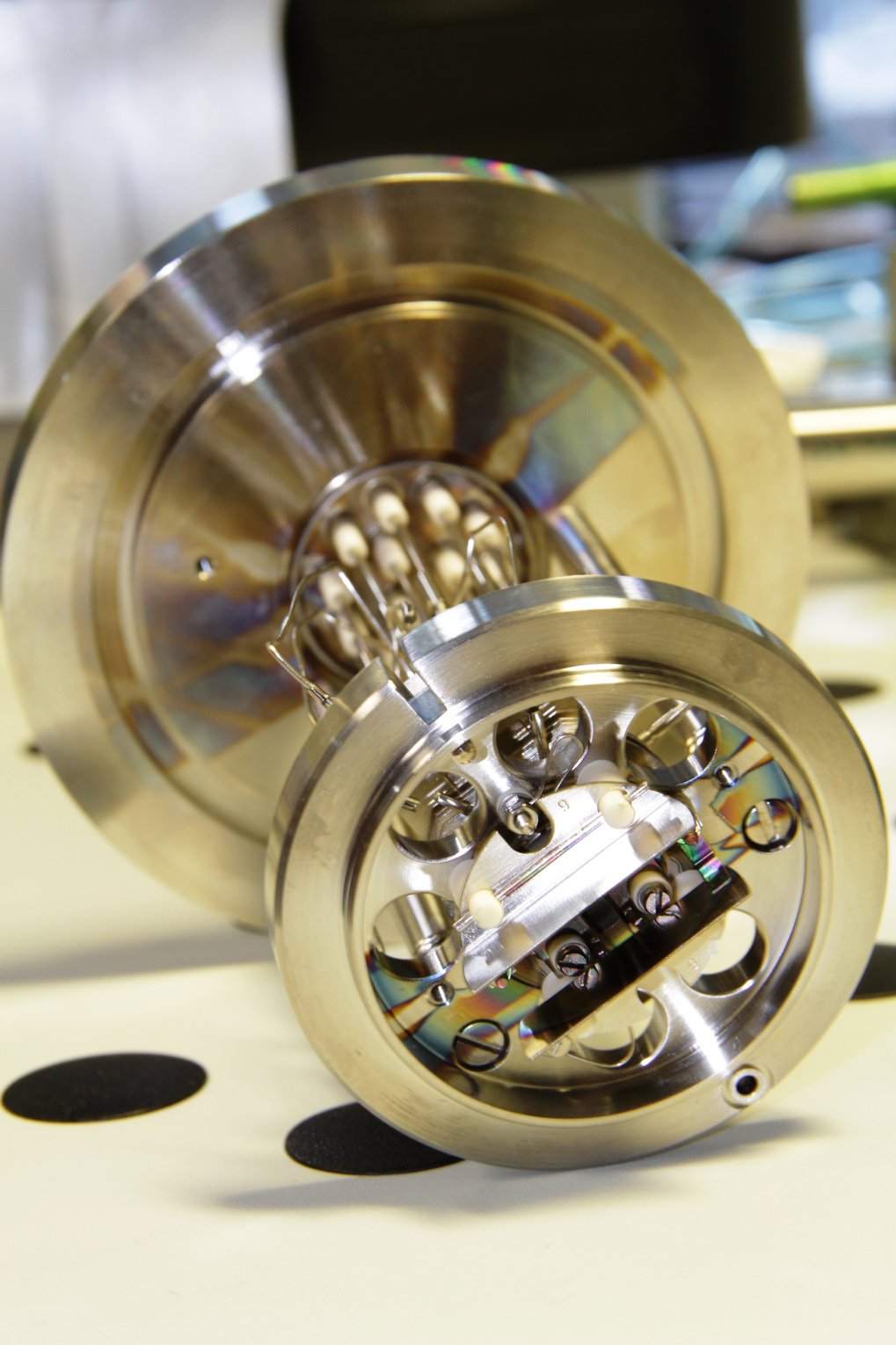

High-Temperature Conversion – Isotope Ratio Mass Spectrometry (HTC-IRMS)

Isotopic ratios of oxygen and hydrogen are analysed on Ianosch (Isotope Analyser for Oxygen and Hydrogen), a Delta+XL that is coupled to either a TC/EA furnace from Thermo Fisher, or to a similar furnace produced by Hekatech. The former is equipped with a liquid autosampler, while the latter is set up for solid samples via a Costech Zero Blank autosampler. The quantitative catalytic conversion of water or organic compounds is achieved in a glassy carbon reactor at temperatures above 1350 °C (Gehre et al., 2004). The products of this reaction are H2 and CO gas that are consequently analysed. The reactor contains a tube in tube design consisting of a ceramic outer, and a glassy carbon inner tube.

This design ensures a stable carrier gas flow and leads to a lower CO background (Gehre et al., 2004). The conversion of an analyte to H2 gas is not quantitative if the analyte contains halogens, nitrogen or sulphur (Gehre et al., 2017; Gehre et al., 2015; Nair et al., 2015). When analysing hetero-atom containing analytes, elemental chromium needs to be used as reactor filling instead of glassy carbon. Gaseous samples can be analysed by connecting a 10-Port valco valve equipped with two 1 ml sample loops to a needle which is pushed into the injector septum. That way gases (e.g. CH4 and N2O can be injected manually into the HTC.)

The BGC-IsoLab employs three internal standards (working, scaling and QC) in a daily δ2H/δ18O water run consisting of 48 samples and 69 standards. These standards are calibrated against Vienna Mean Ocean Water (VSMOW) and Standard Light Antarctic Precipitation (SLAP) so that all measurement results are given on the VSMOW/SLAP scale. Solid samples are analysed in the same fashion. Here the internal standards are standardised using SMOW and SLAP water in silver capsules that is available at the Reston Stable Isotope Laboratory (USGS). The raw data undergoes a standardised evaluation to bring all data on the VSMOW/SLAP scale. This evaluation is described in Gehre et al. (2004). Example spreadsheets can be downloaded: Water Evaluation Spreadsheet δ2H and Water Evaluation Spreadsheet δ18O

Further reading:

Matthias Gehre, Julian Renpenning, Heike Geilmann, Haiping Qi, Tyler B. Coplen, Steffen Kümmel, Natalija Ivdra, Willi A. Brand, Arndt Schimmelmann
Optimization of on-line hydrogen stable isotope ratio measurements of halogen- and sulfur-bearing organic compounds using elemental analyzer–chromium/high-temperature conversion isotope ratio mass spectrometry (EA-Cr/HTC-IRMS)
Mass Spectrom. (2017), 31, 475–484
Joachim Mohn, Wilhelm Gutjahr, Sakae Toyoda, Eliza Harris, Erkan Ibraim, Heike Geilmann, Patrick Schleppi, Thomas Kuhn, Moritz F. Lehmann, Charlotte Decock, Roland A. Werner, Naohiro Yoshida, and Willi A. Brand
Reassessment of the NH4NO3 thermal decomposition technique for calibration of the N2O isotopic composition.
Mass Spectrom. 30 (2016) 2487–2496
Sperlich, P., Uitslag, N. A. M., Richter, J. M., Rothe, M., Geilmann, H., van der Veen, C., Röckmann, T., Blunier, T., and Brand, W. A
Development and evaluation of a suite of reference gases for CH4 in synthetic air
Atmos. Meas. Tech., 9, 3717–3737 (2016)
Matthias Gehre, Julian Renpenning, Tetyana Gilevska, Haiping Qi, Tyler B. Coplen, Harro A.J. Meijer, Willi A. Brand, and Arndt Schimmelmann, "On-line hydrogen-isotope measurements of organic samples using elemental chromium: an extension for high temperature elemental-analyzer techniques," Analytical Chemistry 87 (10), 5198-5205 (2015).
S. Nair, H. Geilmann, T. Coplen, H. Qi, M. Gehre, A. Schimmelmann, W. A. Brand
Isotopic disproportionation during hydrogen isotopic analysis of nitrogen-bearing organic compounds
Rapid Commun. Mass Spectrom. (2015) 29, 878–884
H. P. Qi, M. Groning, T. B. Coplen, B. Buck, S. J. Mroczkowski, Willi A. Brand, Heike Geilmann, and M. Gehre, "Novel silver-tubing method for quantitative introduction of water into high-temperature conversion systems for stable hydrogen and oxygen isotopic measurements," Rapid Communications in Mass Spectrometry 24 (13), 1821-1827 (2010).
M. Gehre, H. Geilmann, J. Richter, R. A. Werner, and W. A. Brand, "Continuous flow 2H/2H and 18O/16O analysis of water samples with dual inlet precision," Rapid Communications in Mass Spectrometry 18 (22), 2650-2660 (2004).
